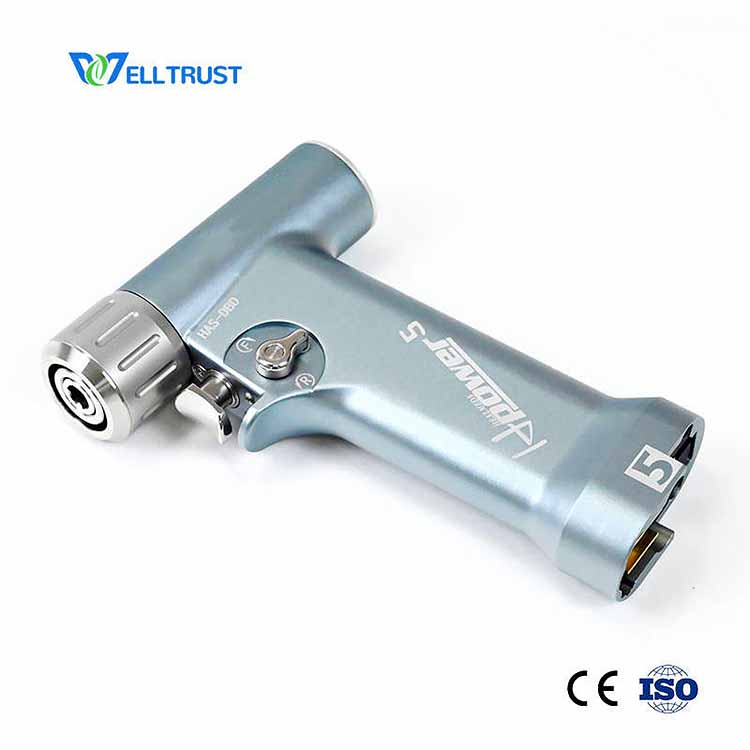

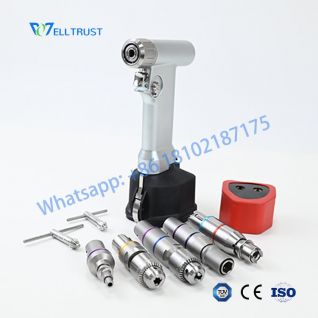

E100 surgical power tools

E100 is high-end surgical power tools integrated with real USA brushless motor and drive which can resist against 2000+ times autoclave sterilization. The highly sealed design makes the machine durable and convenient for orthopedic surgery.

Advantages

1) Surgical power tools E100 drill has multifunctional mini handpiece integrated with drill, saw, reamer, k wire driver and 20+ attachments.

2) The attachments are quick-coupling with OEM interface compatible with various brands.

3) USA brushless motor is autoclavable for 2000+ times hpht sterilization with strong and stable power output.

4) Mini handpiece is only 0.8kg with perfect ergonomic design and can drive a variety of quick connected adaptors.

5) Rechargeable Ni-mh green battery with 2100mah big capacity.

6) Battery house is peek material with light weight, able to resist 3000+ times autoclave sterilization.

7) Surgical power tools E100 applies to veterinary surgery, joint surgery, trauma surgery, sternum surgery and etc.

Features:

a. Handpiece is integrated with reciprocation saw attachment

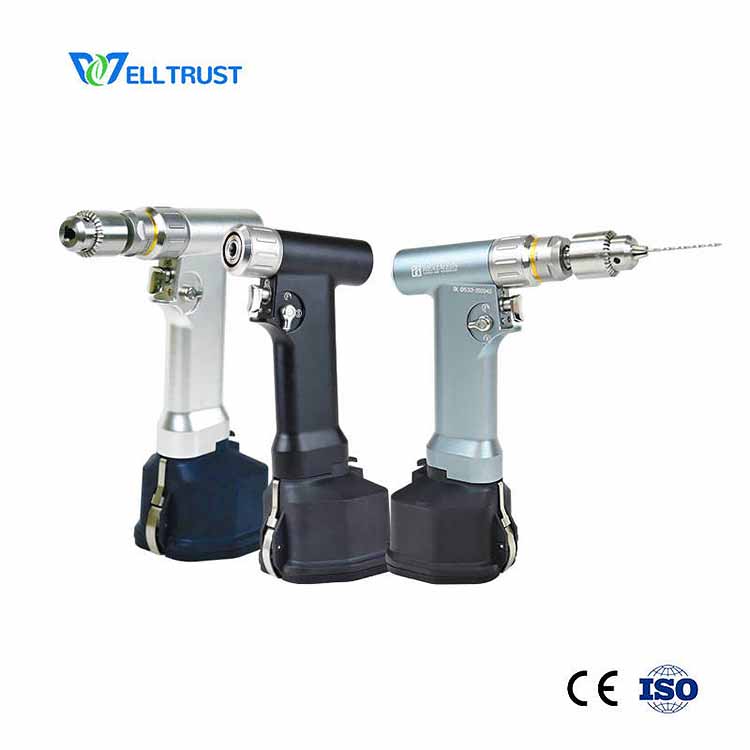

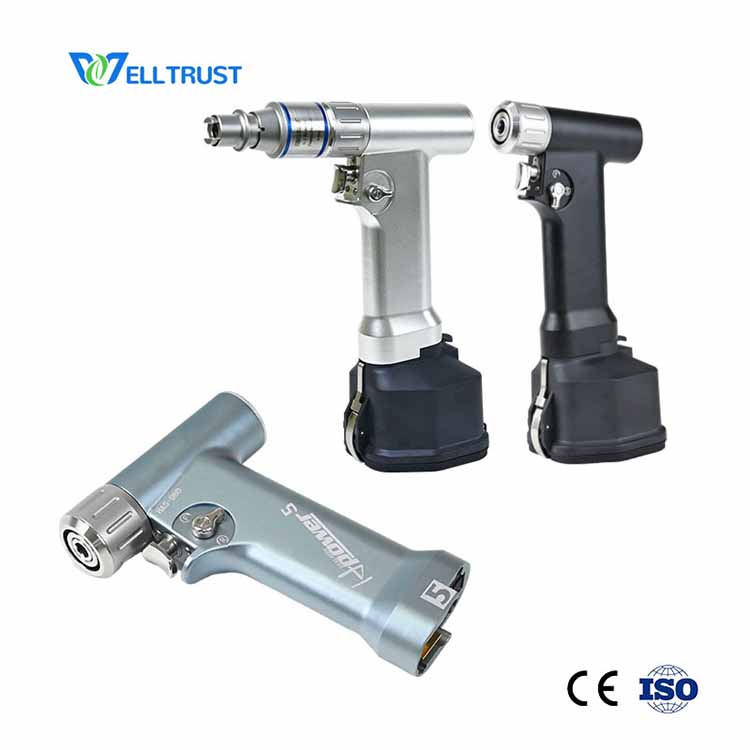

b. Customized colors (black, grey, silver grey).

c. 5:1 attachment is ideal for acetabular abrasion in THR THA total hip arthroplasty

d. All orthopedic drill accessories are compatible with global famous brand bone drill

No. Item          Values

1.1 Speed Range(Jacobs Key Chuck 0.7-6.5mm) 0-1200rpm

1.2 Torque(Key Chuck attachment) 3.5N.m

2.1 Speed Range(3:1 Reaming Attachment) 0-400rpm

2.2 Torque(3:1 Reaming Attachment) 10N.m

3 Operation(V) voltage 9.6V

4 Radial circle run-out ≤0.1mm

5 Axial movement ≤0.5mm

6 Battery Volumn 2100mAh

7 Biggest drill bit diameter 8mm

8 Diameter of Cannulation 6.5mm

9 Reciprocating saw speed 0-12000cpm

10 Micro sagittal saw speed 0-20000cpm

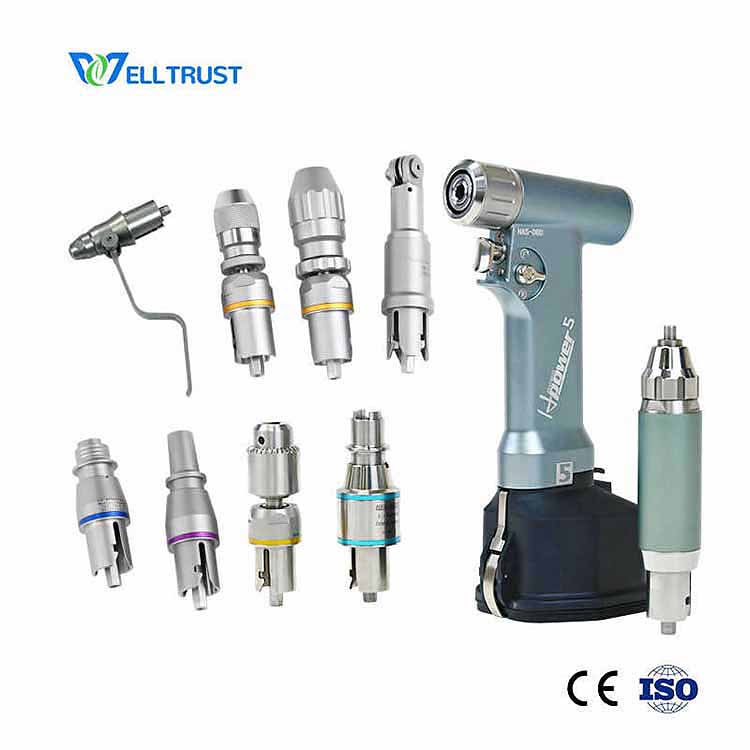

E100 surgical power tools applied ATTACHMENTS

1. 1-4.0mm mini Jacobs drill chuck

2. 0.7-6.5mm Jacobs drill chuck

3. Jacobs reamer chuck 3:1&5:1

4. 0-4.0mm Keyless drill chuck

5. 0-8.0mm Keyless drill chuck

6. 1:1 Small AO drill chuck

7. Large AO chuck: 1:1 drill, reamer chuck 3:1&5:1

8. 1:1 Mini AO drill

9. Bone reaming chuck: 1:1 drill, reamer chuck 3:1&5:1

10. Reciprocating saw

11. Micro sagittal saw

12. K wire driver (0.7-1.6mm, 1.8-4.0mm)

13. Bone reamer attachment 3:1

14. Large AO reaming attachment 3:1
