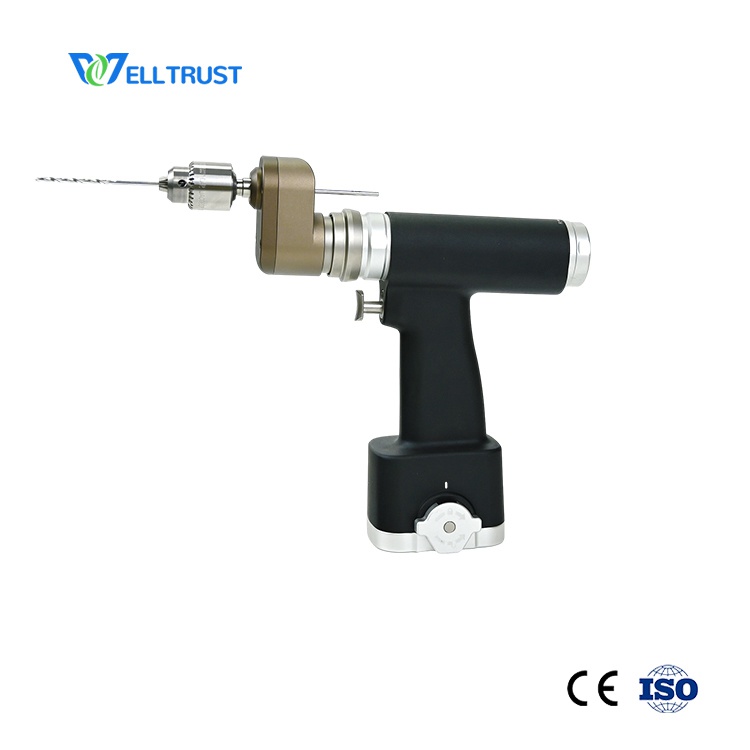

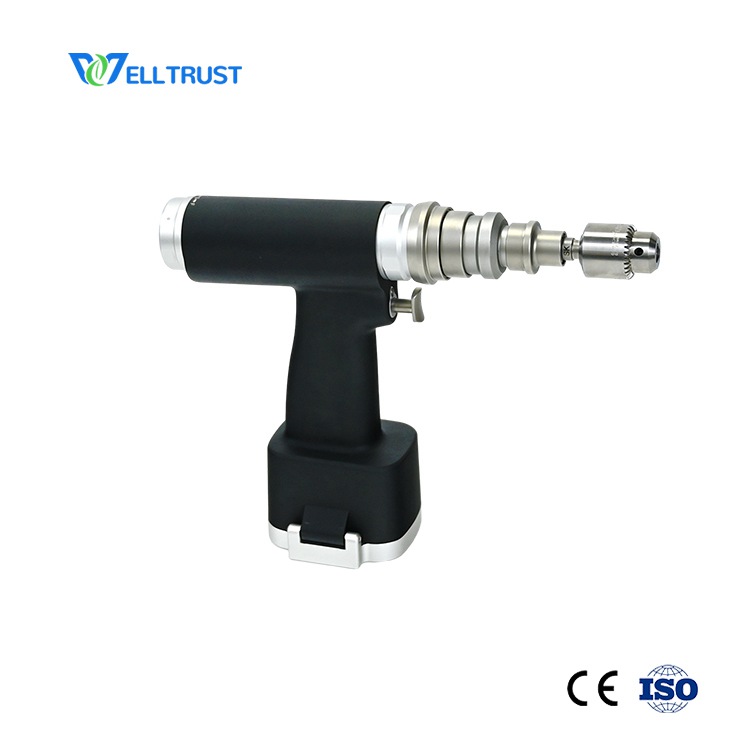

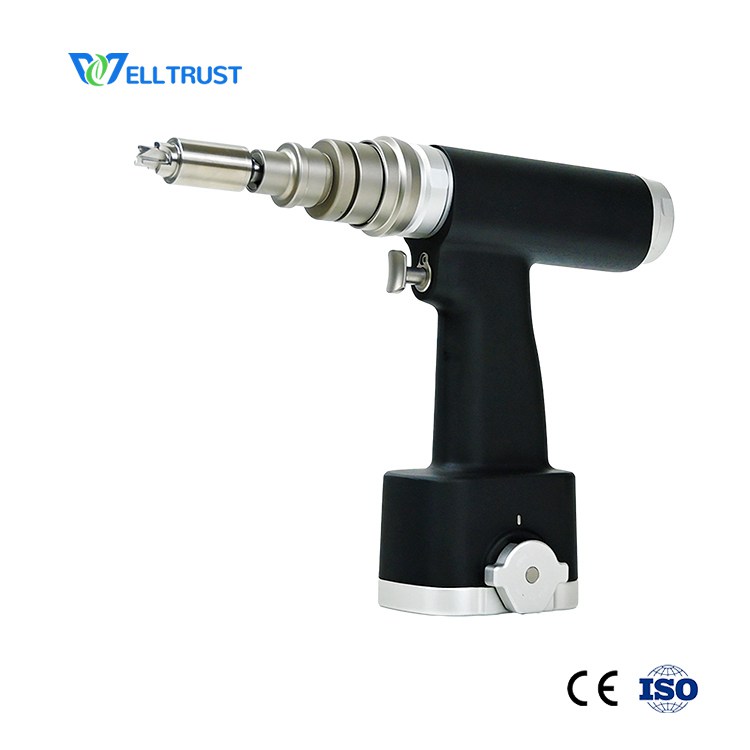

A+100 multi drill saw set
A+100 is selected multifunctional surgical power tool for multi purpose use in big bone and big animal orthopedic procedures. All items can be sold separately.
Applied surgery: trauma, joint, neurosurgery, carniotomy, sternum surgery, veterianry, k wire driver surgery.
Function: drilling, reaming, oscillating cutting, skull grinding, reciprocating cutting
Surgical electric multifunctional orthopedic drill and saw system applies for all kinds of ortho operations.
The multifunctional surgery drill system is widely used in joints, trauma, neurosurgery, and intracardiac surgery. Ergonomically designed, it is the good choice for operators, and it can be completely controlled under the premise of ensuring the speed to ensure safety. The new imported motor has strong power and stable output. Support component can quick change, ensuring the operational efficiency of medical personnel.

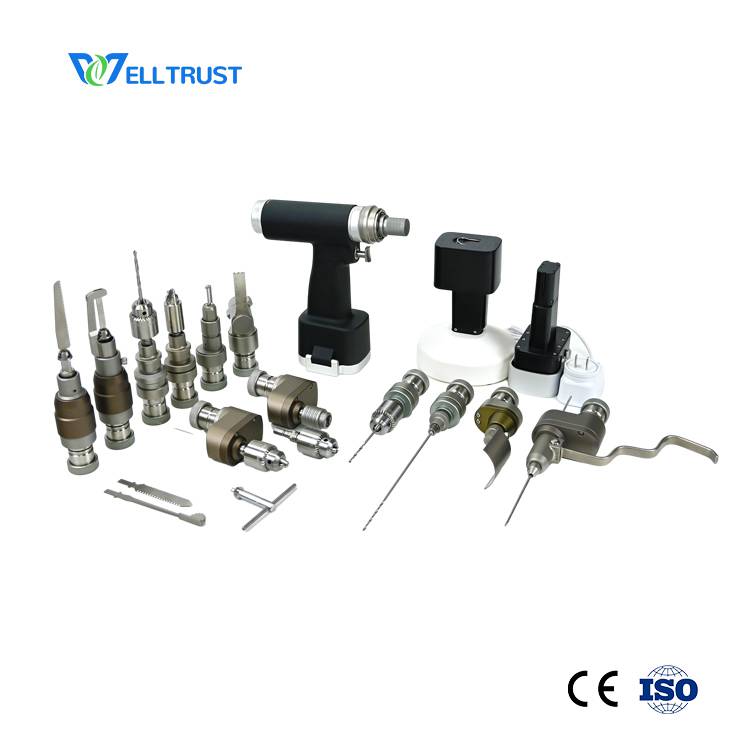

Orthopedic drill and saw item list
( *all items can be sold separately)
| Components | Quantity |
| Multifunctional host | 1 |
| Quick chuck | 1 |

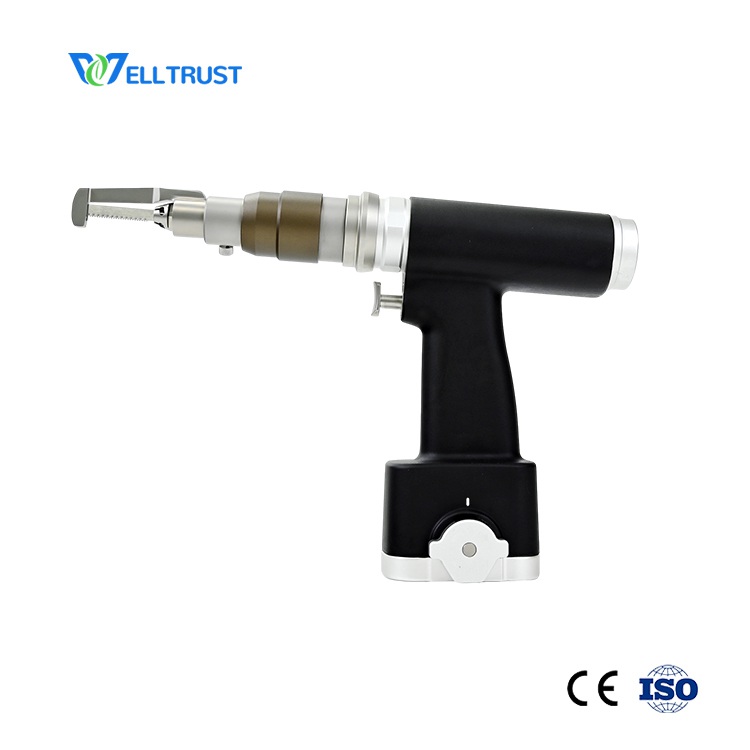

| Oscillating saw attachment | 1( with two surgical saw blades） |
| Canulate drill attachment | 1 |
| Large AO drill attachment | 1 |
| Cranial drill attachment | 1(with one cranial perforator) |
| Cranial mill attachment | 1 (with two skull drill bits) |
| Sternum Saw attachment | 1 ( with two sternal saw blades） |
| k-wire attachment | 1 |
| TPLO saw attachment | 1 (with one tplo saw blade) |
| 7 stars blades | 2 |
| Surgery drill battery | 2 |
| Sterilizing channel | 2 |

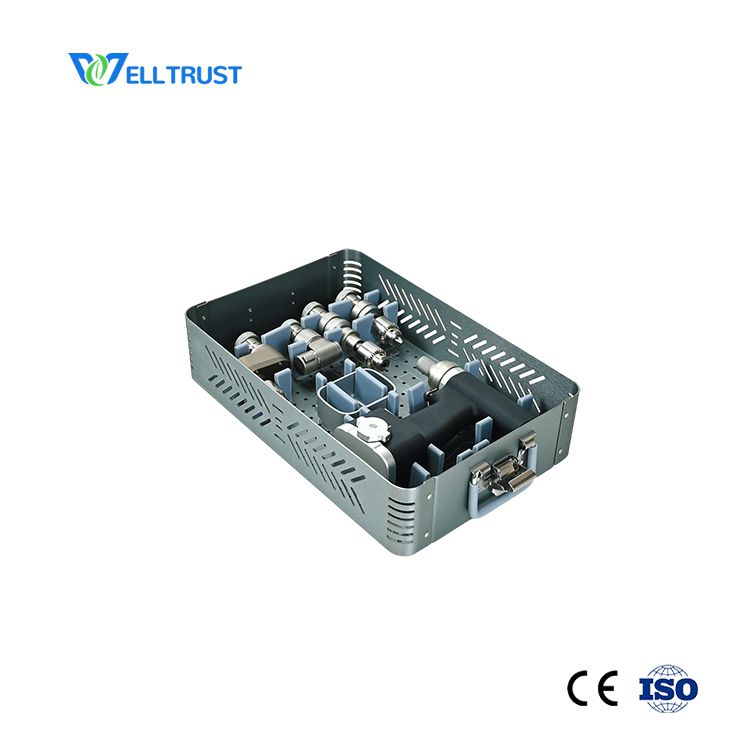

| Sterilization box | 1 |

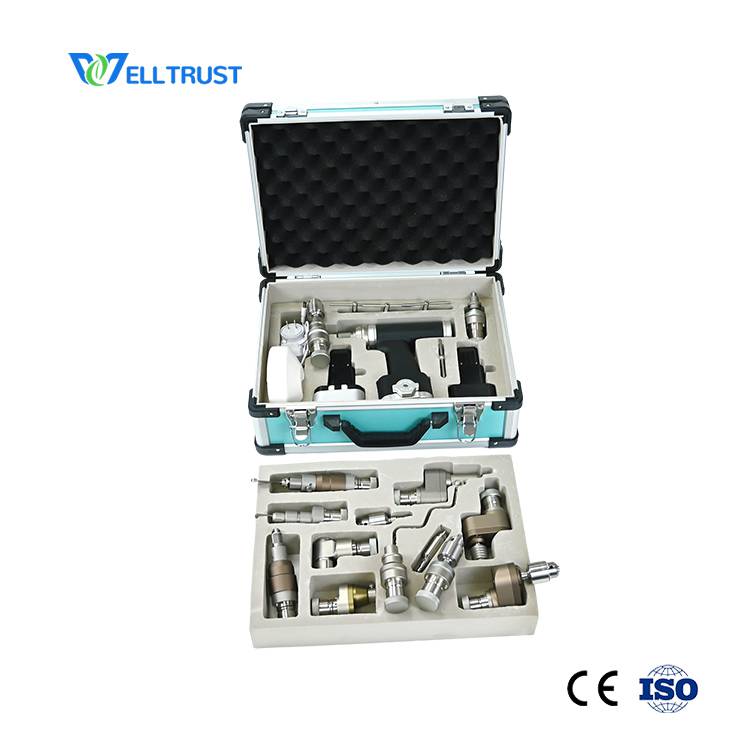

| Aluminum alloy carrying box | 1 |
| High temperature plug | 1 |
Interfaces：
Two types interfaces for drill chuck, reaming chuck and cannulated drill attachments,
Saw base: 7-star type basically, other type available for OEM.
| Data surgery drill |
Normal bone drill |
Hollow drill |
Grinding drill |
Craniotomy drill |
High torque joint drill |
| Output power(w) |
80-200 |
130 |
130 |
130 |
150-200 |
| Rotating speed(rpm) |
0-1200 |
0-1200 |
0-300 |
0-900 |
0-300 |
| Noise(db) |
≤65 |
≤65 |
≤65 |
≤40 |
≤65 |
| Disinfection(℃) |
≤135 |
≤135 |
≤135 |
≤135 |
≤135 |
| Battery(v) |
14.4 |
14.4 |
14.4 |
14.4 |
14.4 |
| Charging time(h) |
3 |
3 |
3 |
3 |
3 |
Warranty for whole orthopedic drill and saw set is 1 year, for motor is 2 years, for the battery and other fast consumption items is 3 months.
PACKING For Surgery Drill
| Size (cm) | 44*28*17 | ||
| Weight | 8 kg | ||
| Material |
A. Carton packaging B. Aluminum packaging
|
