A150 oscillating saw

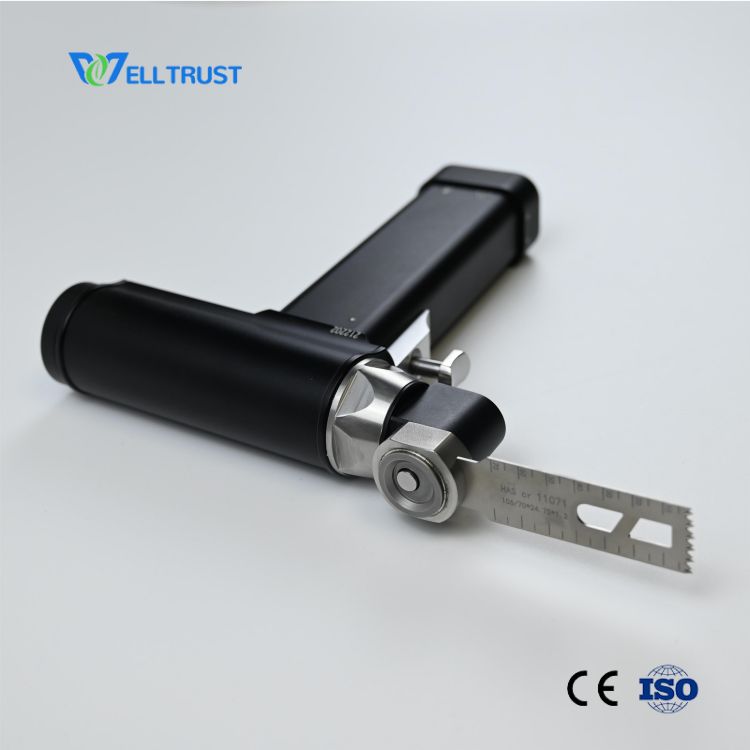

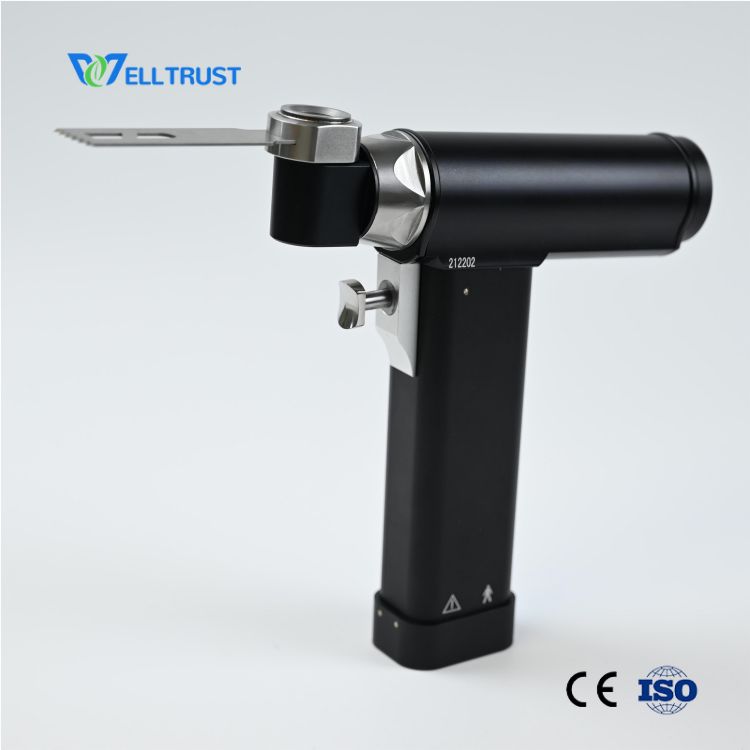

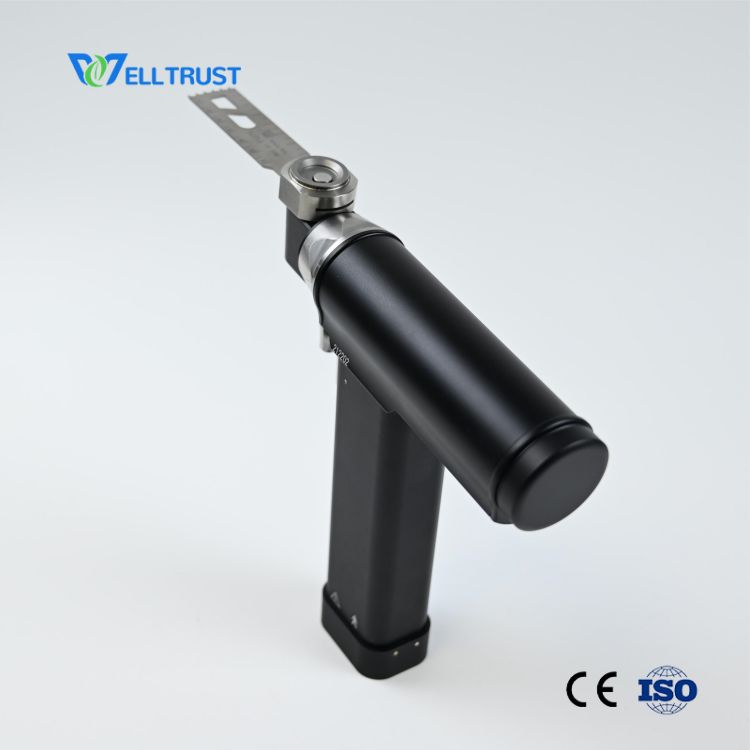

WTT-A150 Oscillating Saw Set

Introduction:

This WTT-A150 is a basic single function oscillating saw orthopedic saw, usually used for big bone surgery. The body can be sterilized by high temperature and high pressure. Starting quantity (MOQ) is 1 set, with free Marking your logo service.

One set oscillating saw orthopedic use comes with 1-year warranty, and free repair parts or new replacements available for quality problems in warranty. We will also provide lifelong technical support.

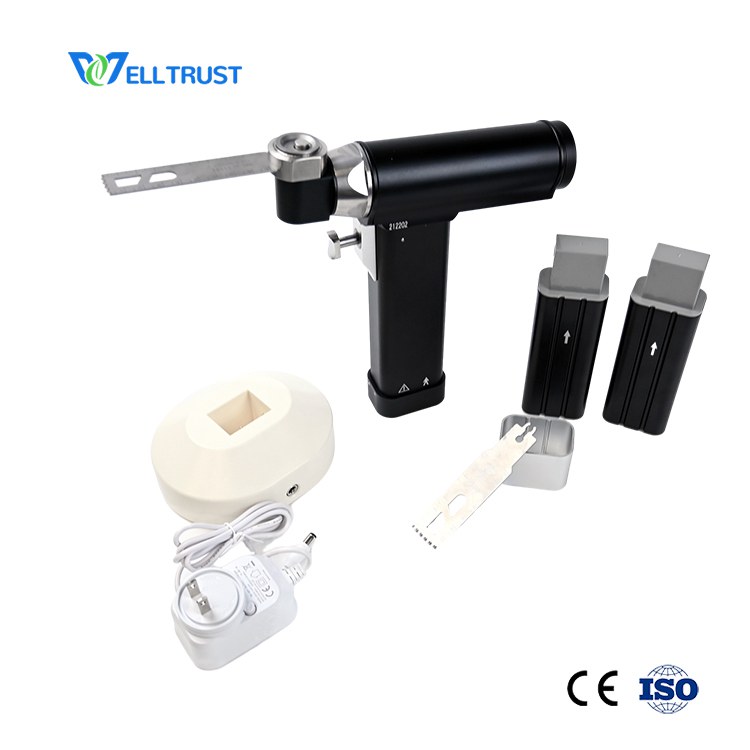

Standard configuration:

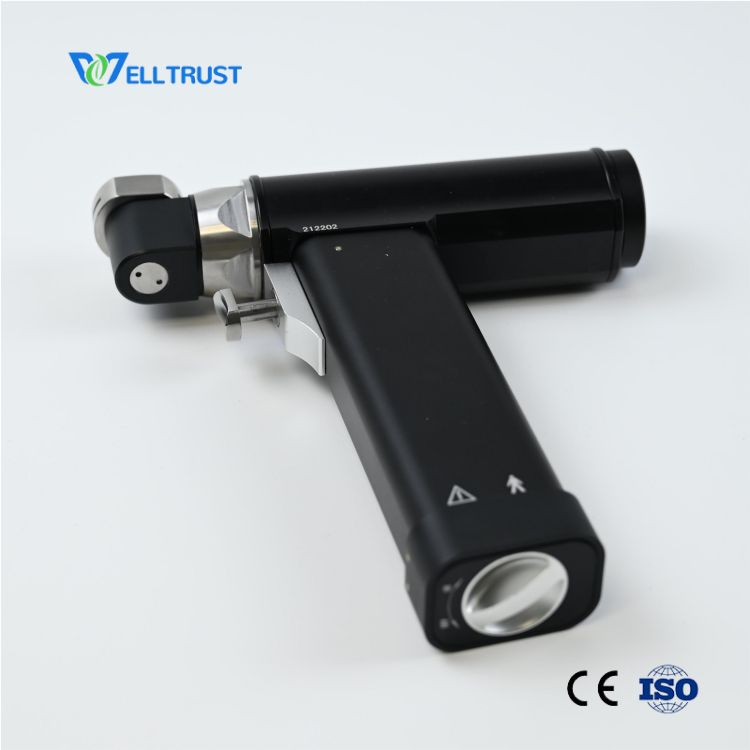

1. Handpiece  × 1
2. Battery  × 2

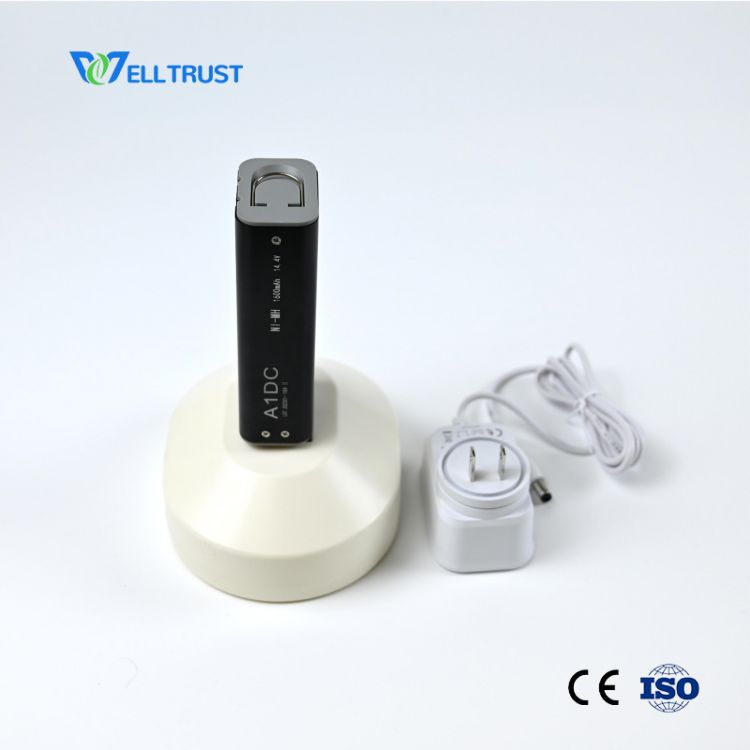

3. Charger  × 1
4. Saw blade  × 2
5. Sterilize channel  × 1

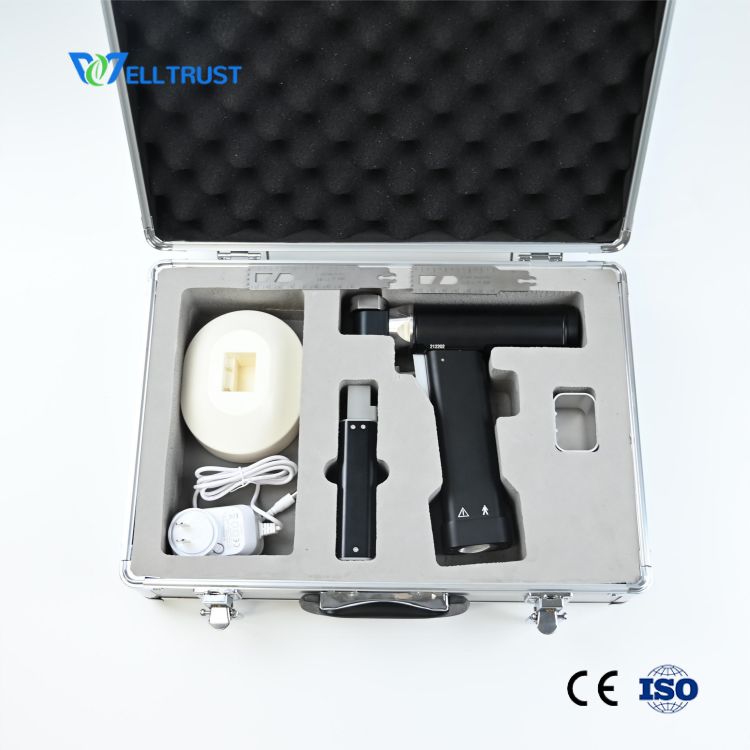

6. Carrying box  × 1

Technical Data

1. Speed: 0-15000cpm

2. Sterilization : ≤135℃ autoclave

3. Noise: ≤75dB

4. Battery capacity: 1800mAh

5. Operation(V) voltage: 14.4V

6. Output power: 150W

7. Continuous working time: about 20 minitues

Weight Data

1. One handpiece + one battery: 1.3kg

2. One battery: 0.4kg

3. One charger: 0.25kg

4. One standard set packed in alluminum case: 5kg

5. One standard set packed in carboard box: 3.5kg

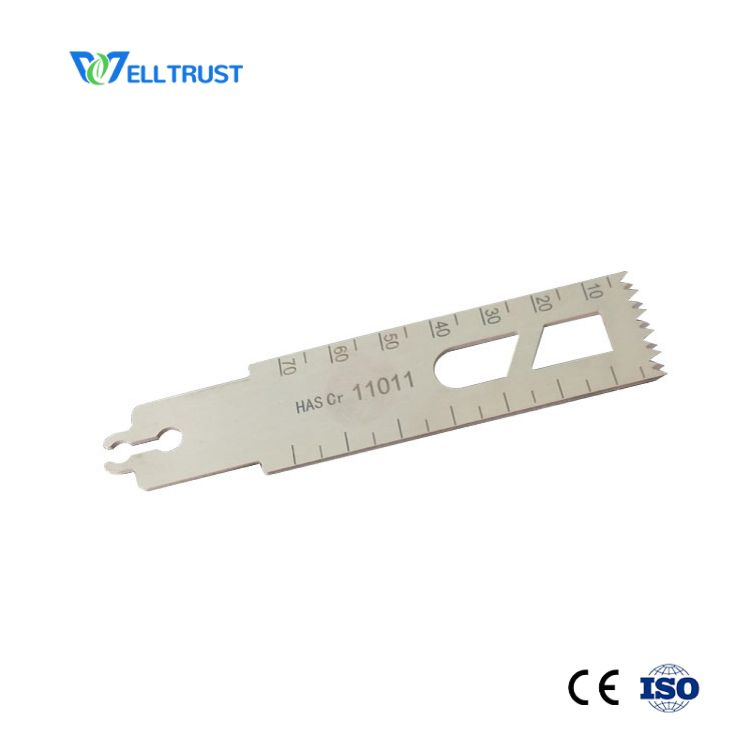

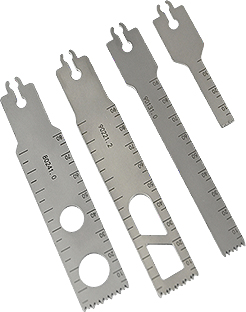

Blade Sizes optional for A150 oscillating saw orthopedic use

Item No.	Type	Size (Length*Width*Thickness) mm	Working Length(mm)	Function
1		40*19*1.0	40	small bone
2		70*24.75*1.2	70	small bone
3		120*22*1.2	85	Knee Joint
4		115*13*1.0	80	intercondylar
5		120*19*1.2	85	Knee Joint
6		124.8*19*1.0	90	Knee Joint
7		106*24.75*1.2	70	Hip Joint
8		134.8*22*1.2	100	Knee Joint
9		124.8*22*1.0	90	Knee Joint
10		106*24.8*1.2	80	Hip Joint
11		124.8*25*1.2	90	Knee Joint
12		124.8*22*1.2	90	Knee Joint
13		134.8*19*1.2	100	Knee Joint
14		106*24.75*1.2	70	Hip Joint
15		134.8*22*1.2	100	Knee Joint

Details of A150 oscillating saw orthopedic use:

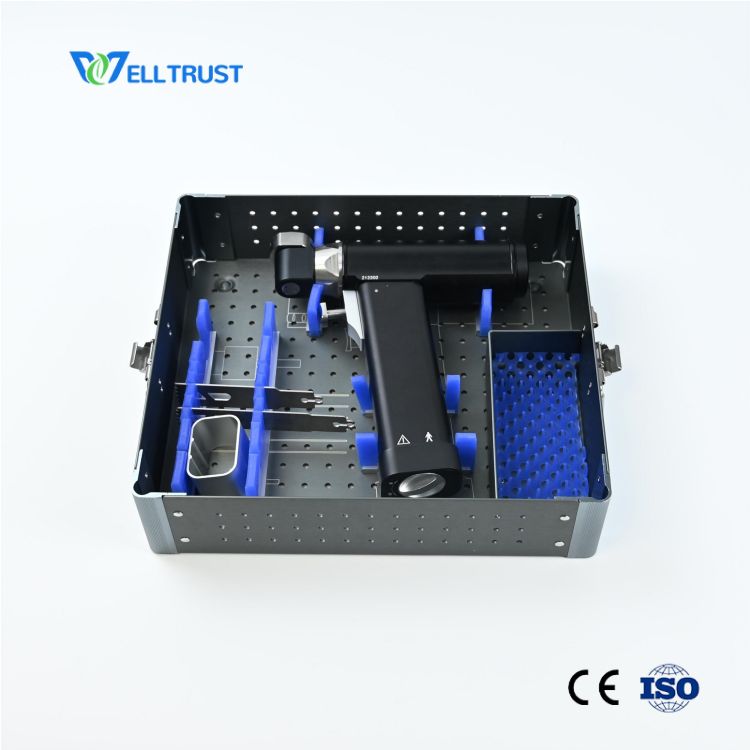

Sterilization box: size is 31*27.5*8cm

N.W. is 1.55kg
