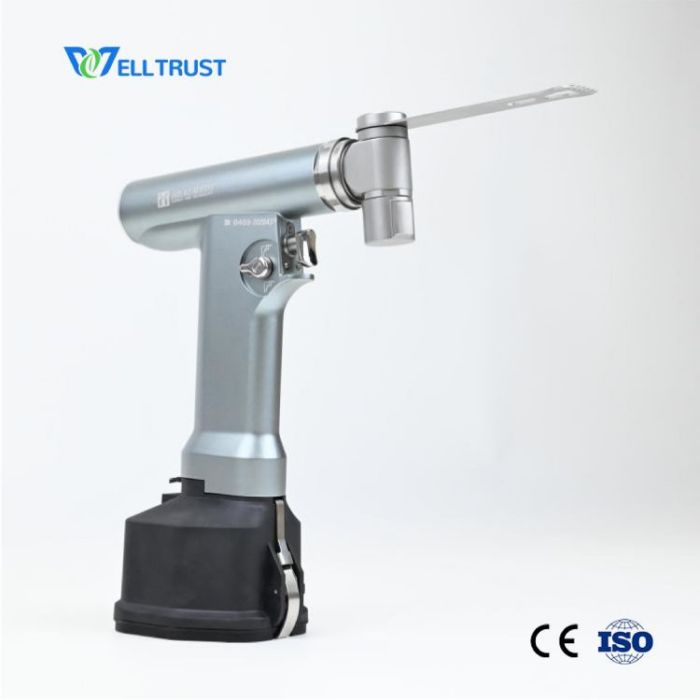

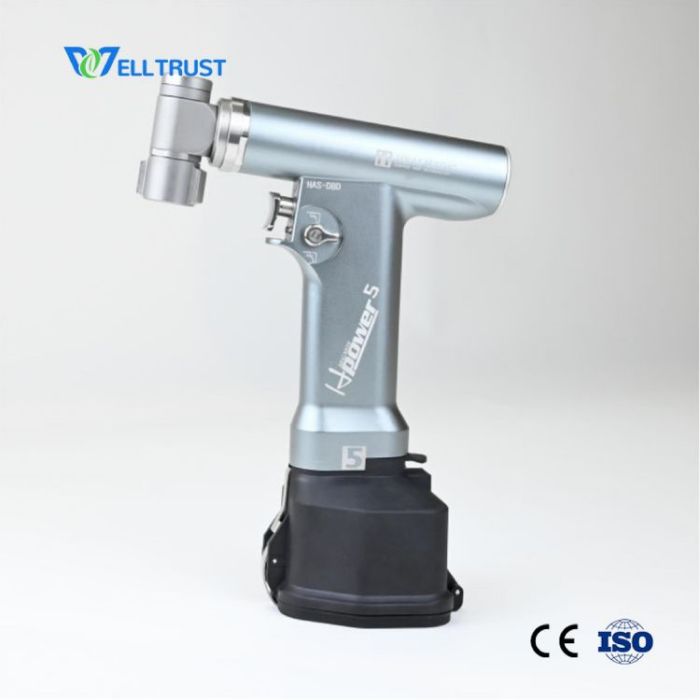

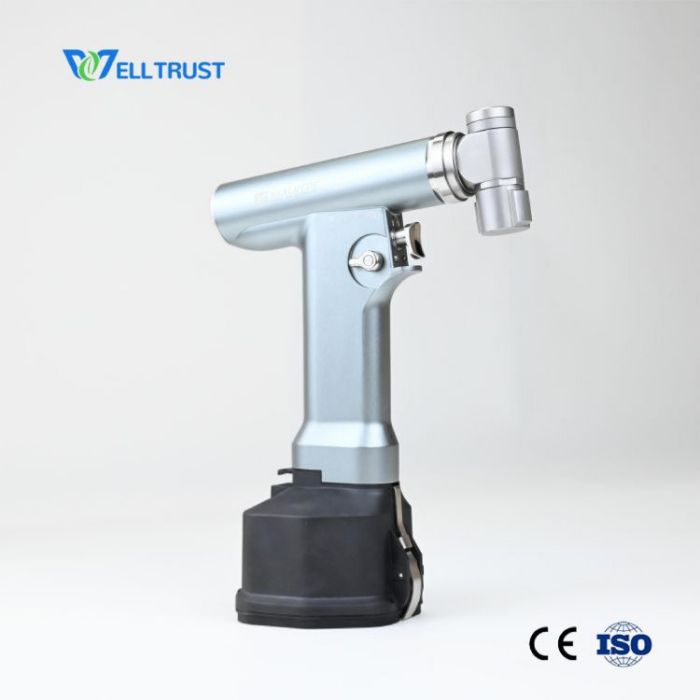

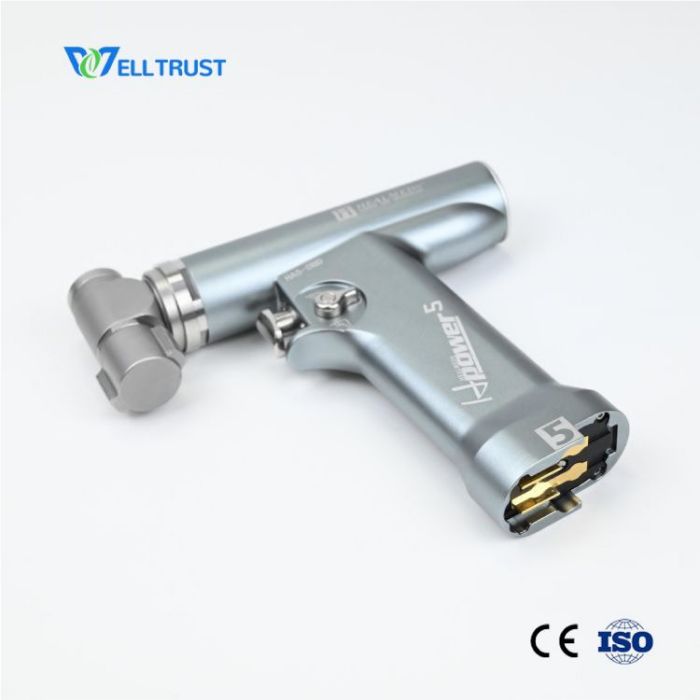

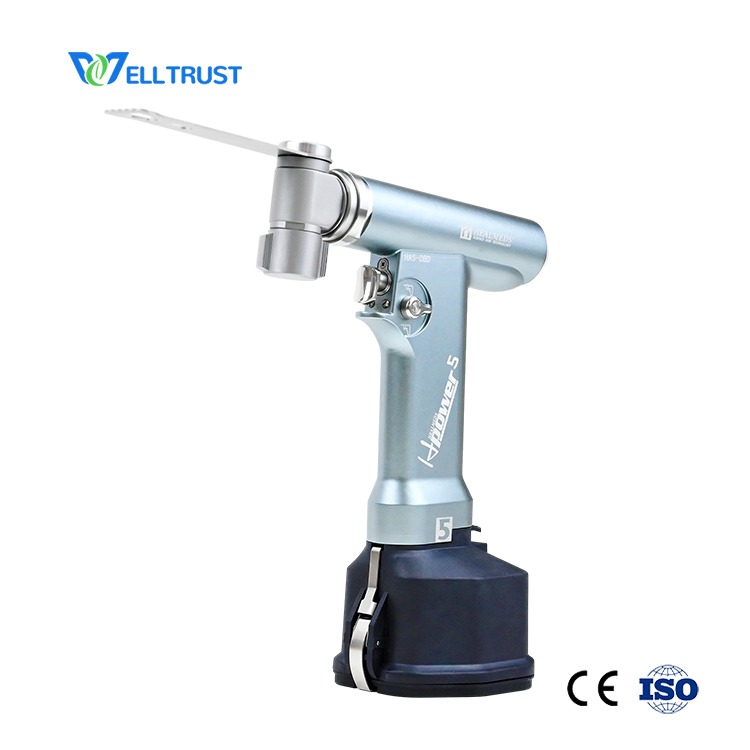

E150 Surgical Orthopedic Oscillating Saw with USA Brushless Motor
USA brushless motor and drive
For large bone surgery.
Powerful, lightweight
Can be sterilized by high temperature and high pressure
Powerful E150 surgical oscillating saw with USA brushless motor
E150 is a type of professional orthopedic saw with continuous working time can last for 30 minutes during surgery. Surgical oscillating saw E150 can be used in joint replacement surgeries, including total hip replacement and arthroplasty, unilateral condylar replacement and other procedures on joints.
The E150 is a professional-grade orthopedic surgical oscillating saw designed specifically for the rigorous demands of joint replacement surgeries. Equipped with a high-performance USA brushless motor, it delivers unmatched power, stability, and surgical efficiency.
Key Performance Advantages
- USA Brushless Motor: Provides increased torque and reliable output with significantly lower noise levels.
- High Speed Cutting: Up to 11,000 CPM (Cycles Per Minute) with a swing angle of ≥4.5° for fast, clean bone resection.
- Extended Durability: Autoclavable up to 135°C (Improved types up to 155°C), designed for high-frequency clinical use.
- Ergonomic Handpiece: Lightweight design with no-limit speed control for maximum surgeon preference and comfort.
Advanced Technical Features
- 360° Rotating Base: Allows for multiple cutting angles without adjusting the handpiece position.
- Long Battery Life: 2100mAh high-capacity battery supports continuous 30-minute operation during complex surgeries.
- High-Strength Materials: Main components are constructed from imported stainless steel for maximum corrosion resistance.
| Surgical oscillating saw parameters | |||
|---|---|---|---|
|
Oscillations(osc/min) |
0-11000cpm |
Swing |
≥4.5° |
|
Noise |
≤75dB | Operation(V) voltage | 9.6V |
| Sterilization temperature | ≤135℃ | Battery capacity | 2100mAh |
| Battery Type | Ni-MH Green Battery | Color | customizable |

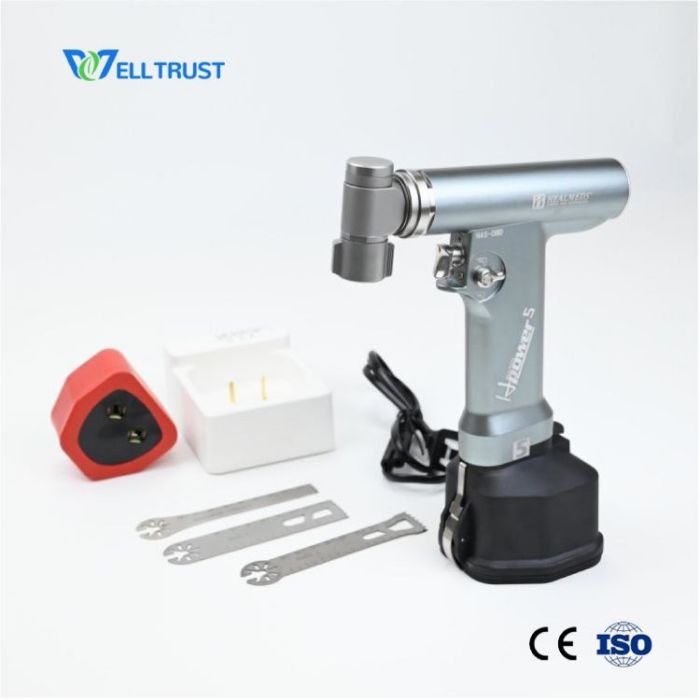

Standard configuration:

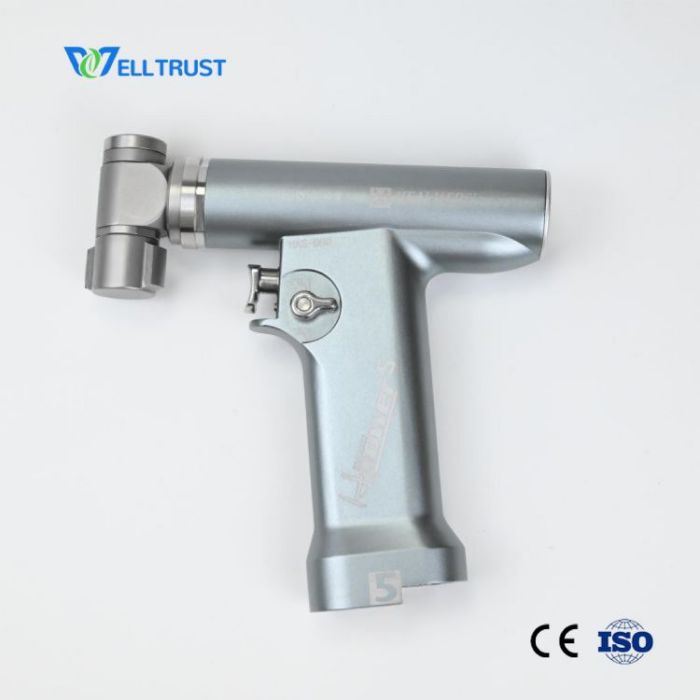

- orthopedic saw handpiece × 1
- battery × 2
- charger × 1
- battery housing × 1

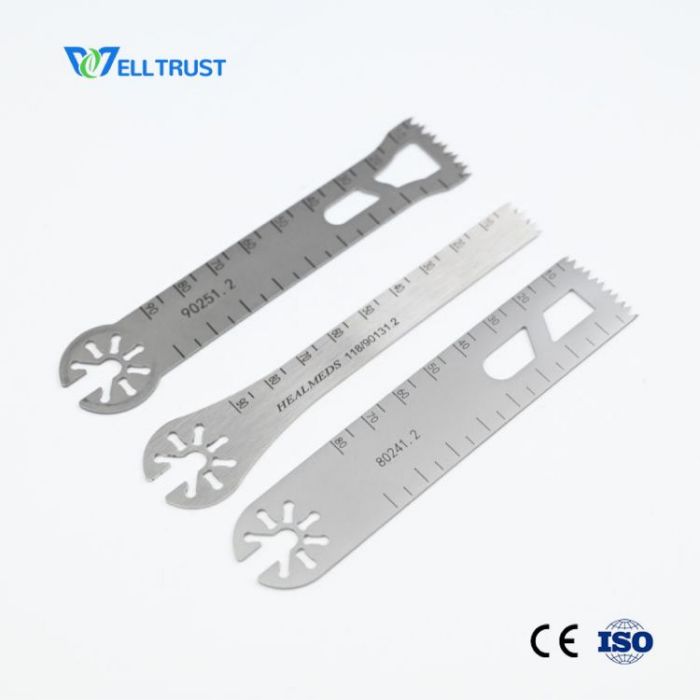

- saw blade × 3
- Alluminum alloy carrying box × 1
- sterilizing channel × 1
Our service
1. On time delivery based on stable supply chain.
3. Provide comprehensive after-sale service.
4. 24 hours online professional team, at any time provide professional answers.
5. There are a number of patented technologies, and the quality is guaranteed.
6. Two years free power drill saw handpiece technical support and six months free accessory support.
