EB100 Multifunctional Veterinary Orthopedic Drill & Saw System
Brushless motor with high performance
Lithium battery with light weight

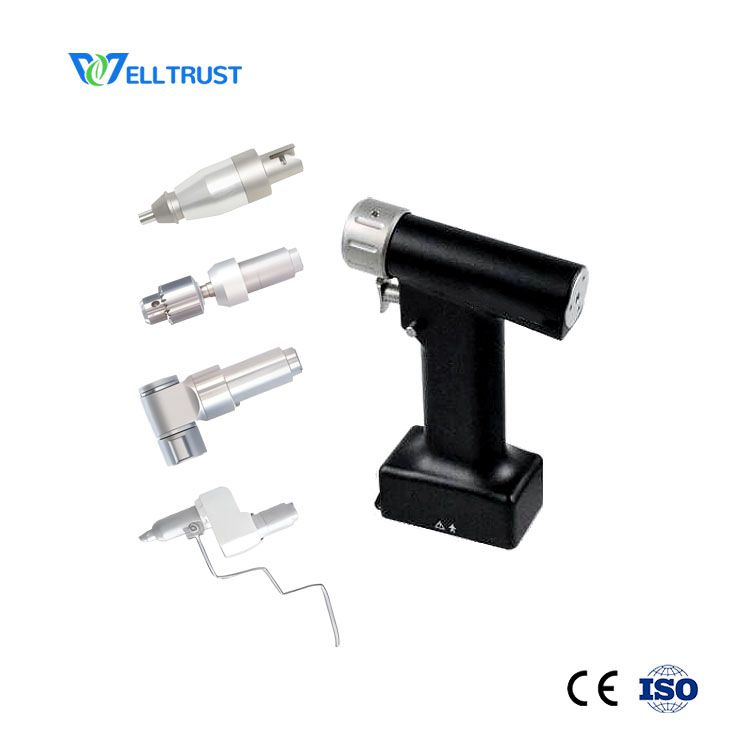

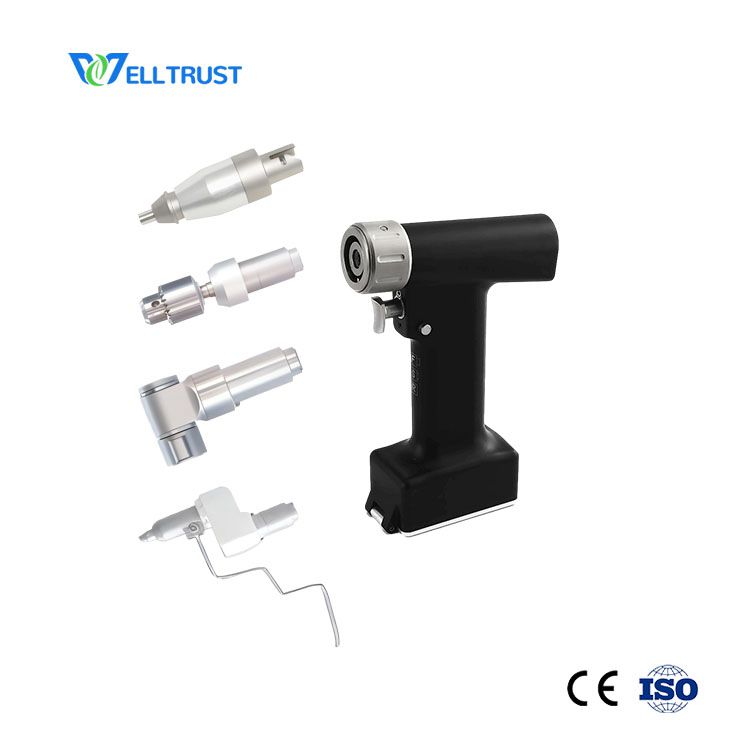

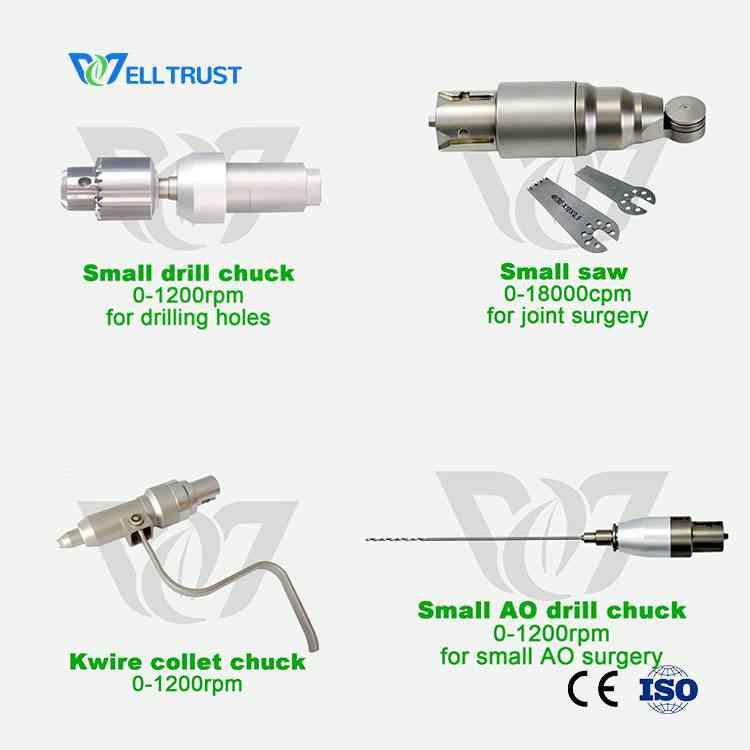

Four attachments:
- Jacobs drill chuck
- small Ao drill chuck
- k wirer driver
- Micro sagittal saw
The EB100 represents a new generation of mini multifunctional veterinary orthopedic drills, specifically engineered for small animal and pet surgeries. Equipped with a high-performance brushless motor and a lightweight lithium battery, it offers the perfect balance of power and precision.
Designed for Precision Veterinary Surgery
Veterinary surgeons require tools that are easy to maneuver in tight spaces. The EB100's lightweight handpiece and quick-coupling system make it the ideal choice for:
- TPLO Surgery: Smooth, controlled cutting for tibial plateau leveling osteotomy.
- Trauma & Fracture Fixation: Precise drilling for plates and screws in small animal trauma.
- K-wire Driving: High-speed performance for Kirschner wire surgery.
- Hand & Foot Surgery: Compact design for delicate small bone procedures.
Technical Superiority
- Brushless Motor: Enhanced torque and longevity with significantly reduced noise (<45dB).
- Concentricity: Radial run-out within 0.05mm for ultimate surgical accuracy.
- Lithium Battery: Lighter than traditional Ni-MH batteries, providing more hours of surgery per charge.
EB100 is new generation mini multifunction veterinary orthopedic drill equipped with high power brushless motor and lithium battery. This battery operated orthopedic drills and saws has easily attachment assembly, lightweight handpiece. Easy carrying, multifunctional and quick-coupling. Mini Multifunctional Drill Saw System suitable for veterinary surgery. The product features variable speed operation, excellent performance, easy operating, multi-function mode for your selection, a wide range of applications.
Application of veterinary orthopedic drill:
- General vet orthopedic operation
- Kirschner wire surgery
- Drilling hole for plate and screw during trauma surgery
- Used for small bone surgery, such as animal surgery, hand and foot surgery
|
No-load speed
|
0-1200r/min
|
Oscillations(osc/min)
|
0-15000cpm
|
|
Chuck gripper diameter
|
≤4mm
|
Sterilization temperature
|
135℃
|
|
Radial runout
|
≤0.10mm
|
Battery capacity
|
2000mAh
|
|
Peak torque
|
2.9N-m
|
Battery Type
|
Ni-MH Green
|
|
No-load
|
noise:≤45dB(A)
|
Battery Operation(V) voltage
|
7.2V
|
|
Noise
|
≤75dB
|
Hollow diameter
|
2.5mm
|
|
Unit rise in temperature
|
≤25°C
|
Output Power
|
20W
|
|
Charging time
|
About 3 hours
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical merits
1) Axial run-out of cincentricity is within 0.05mm
2) Rotated torque 2.9N/m
3) Supporting the interface of the brand products
4) Semi-luser surface treatment technology gives the operator more comfortable operation
5) Multipurpose interface is easier to use in clinic
6) lithium battery, more lighter and powerful.

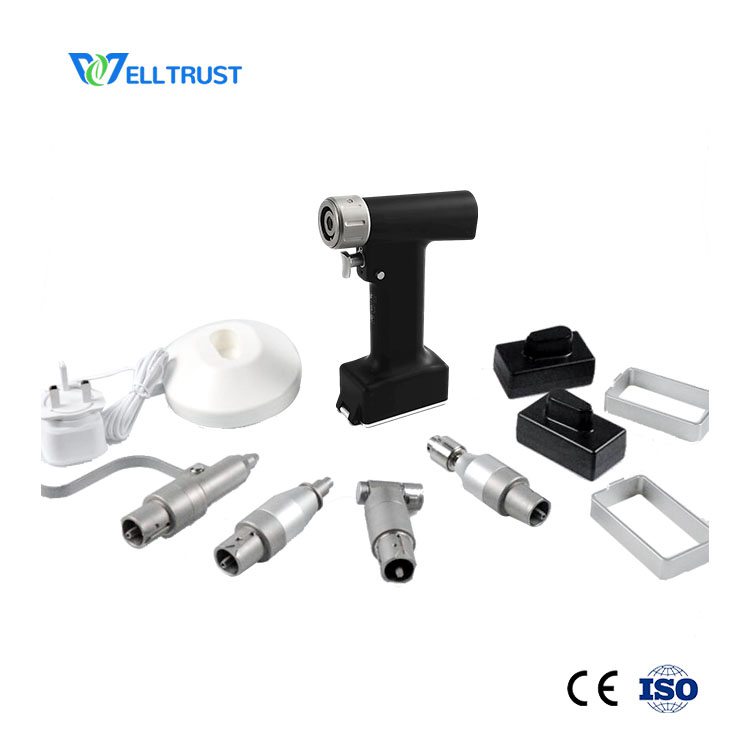

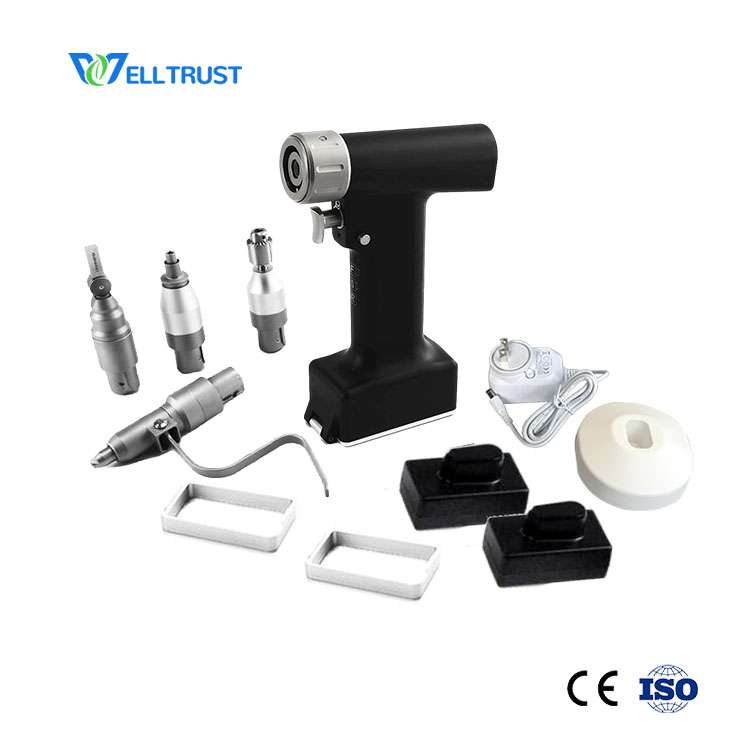

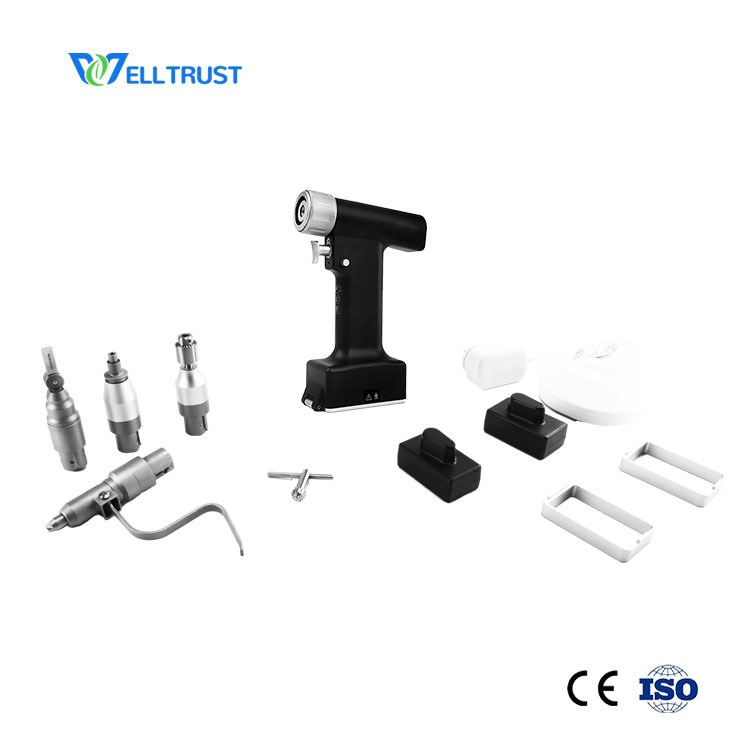

Standard configuration for one set EB100 veterinary orthopedic drill
(2) Two Batteries
(3) One Charger
(4) Two Sterilizing Channels
(5) One Key
(6) One AO drill attachment
(7) One bone drill attachment
(8) One oscillating saw attachment
(9) One K wire driver attachment
(10) Two oscillating saw blades
Our service
1. On time delivery based on stable supply chain.
3. Providind comprehensive after-sale service.
4. 24 hours online professional team providing professional answers.
5. There are a number of patented technologies, and the quality is guaranteed.
6. Lifetime technical support and six months free accessory support.
