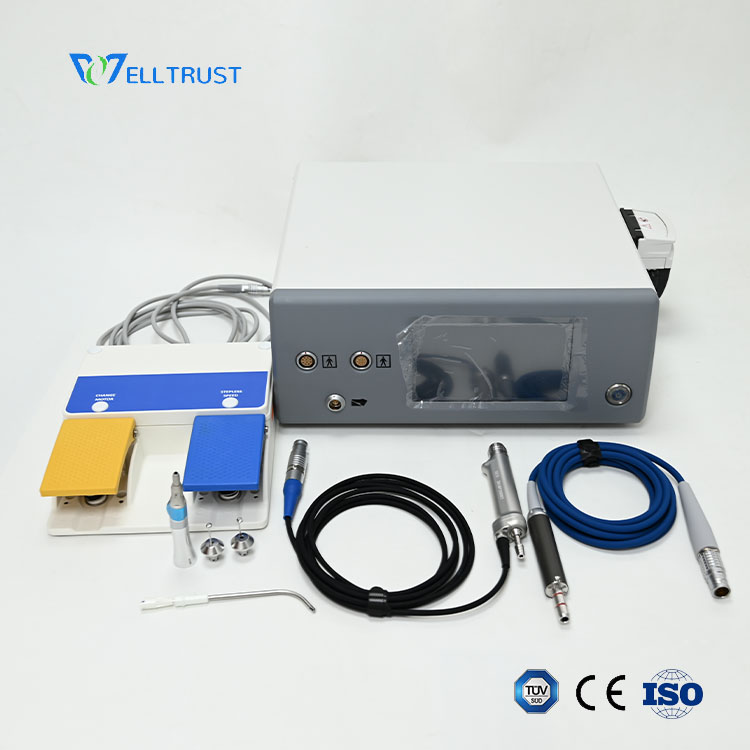

WH100 High-Speed Neurosurgery Drill System with Irrigation
High speed neurosurgery drill application:
- neurosurgery
- spine surgery
- ENT
High speed neurosurgery drill irrigation system
Used for Neuro, ENT and spinal surgery
- Neurosurgery & Craniotomy: Delivers stable, high-torque performance for fast cranial bone flaps and skull base procedures, ensuring precise control near delicate brain tissues.
- Spinal Surgery: Provides the meticulous accuracy required for laminectomy, decompression, and spine fusion, minimizing the risk of nerve root injury.
- 80,000 RPM Ultra-High Speed: Significantly accelerates bone ablation and cutting, which shortens overall tumor resection and reconstruction time to optimize patient outcomes.
- 0.35s Quick Brake Stop: The motor stops within 0.35 seconds after releasing the foot pedal, preventing accidental tissue damage and ensuring maximum intraoperative safety.
- Are the burrs and attachments compatible with other brands?
Our system features standard ISO-E connector types, ensuring excellent compatibility with industry-standard consumables and attachments. - What are the recommended sterilization methods?
The handpieces and standard containers are fully autoclavable. Please follow the user manual for specific temperature and exposure time guidelines. - What is the warranty policy for this drill set?
We provide a comprehensive 1-year warranty covering the console and motors against manufacturing defects.
| Application | Neuro, ENT and spinal surgery |
| Feature | 7 inch touch screen, support operate with gloves on |
| With irrigation pump | |
| Anti Surge | |
| Overload Protection | |
| Torque Compensation | |
| Brake Stop | |
| Multifunction Use | |
| Support Personal Setting | |
| Protect the system from the current shock of high frequency electrotome or other high power equipments | |
| Motor stoped within 0.35s after quick release foot pedal | |
| Certificate | CE, EN ISO13485 |
| Warranty | 1 year |
| Connector Type | ISO-E |
| Speed | Perforator - 1500 RPM, Craniotome - 40'000 RPM |
| Drill - 60'000 RPM [Option 80'000 RPM] | |

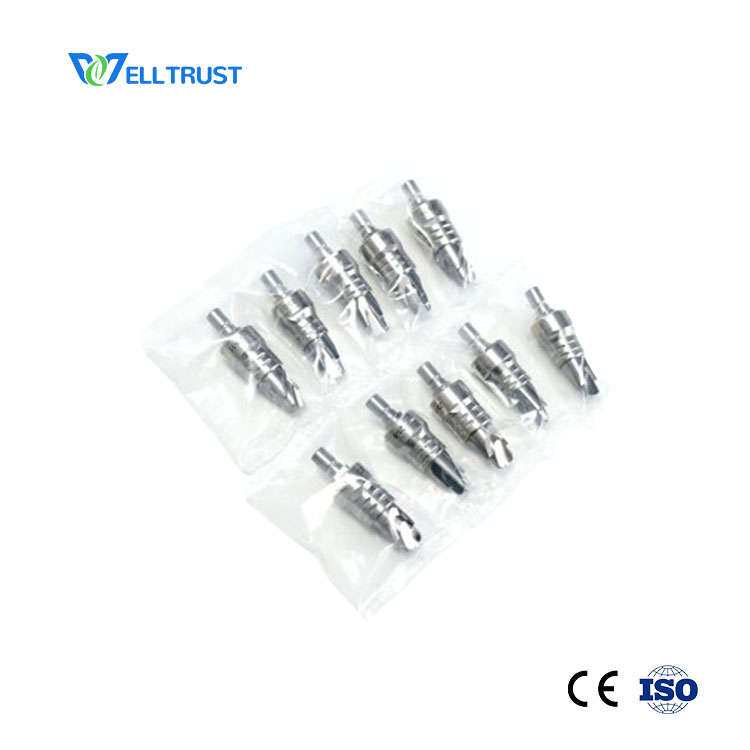

| Size of Perforator | 7-11mm, 9-13mm, 11-14mm [All auto-stop] |
| Configuration | ||

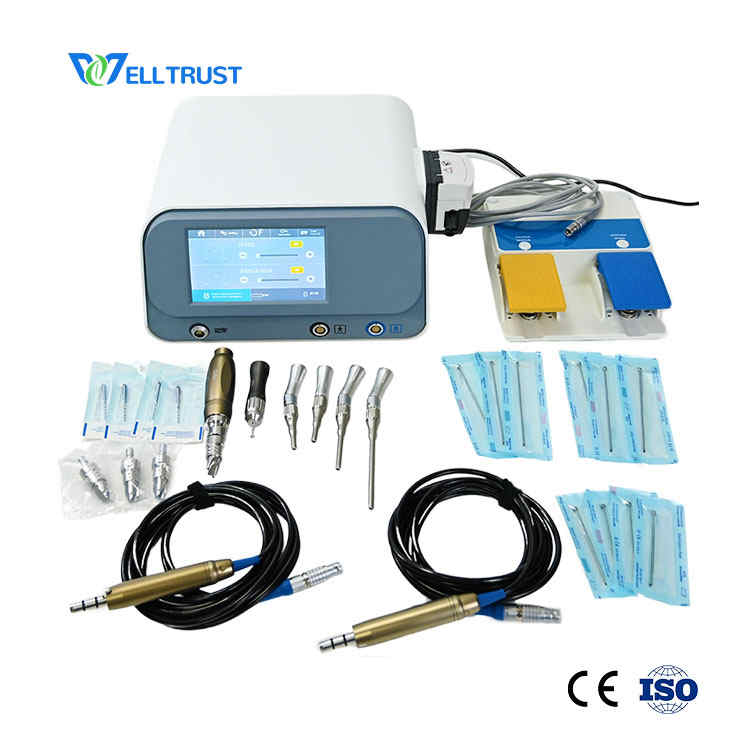

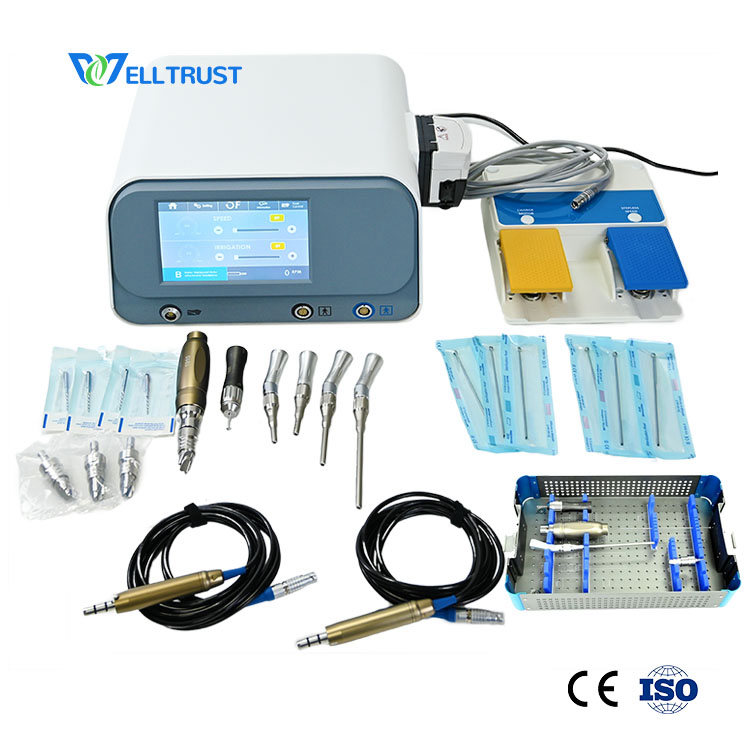

| Multifunctional Surgical Power System - Standard Neurosurgery Drill Set | ||
| No. | Item | Option |

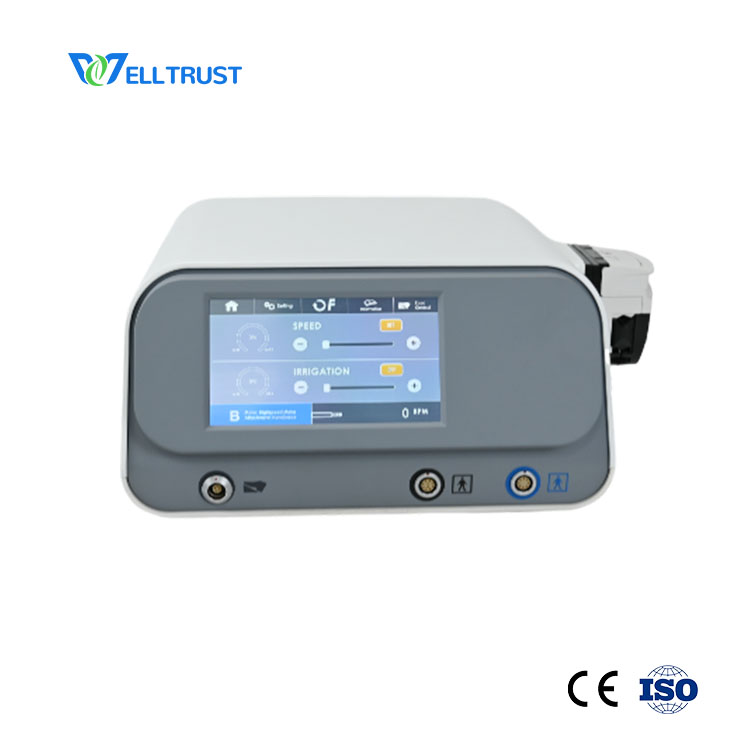

| 1 | TC-01 Multifunctional Console |
|
| 2 | Cranial Motor (high torque) | |

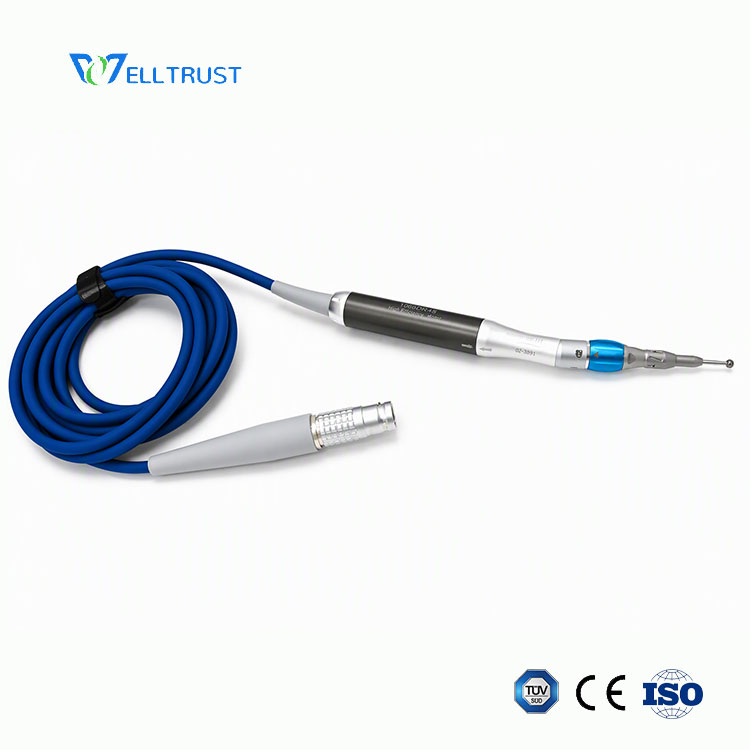

| 3 | High Speed Motor |
TM-02 Cranial Motor TM-01 High Speed Motor 70K RPM TM-03 Shaver Motor 6k/9kRPM TM-04 ENT Shaver Motor 6k/9kRPM |

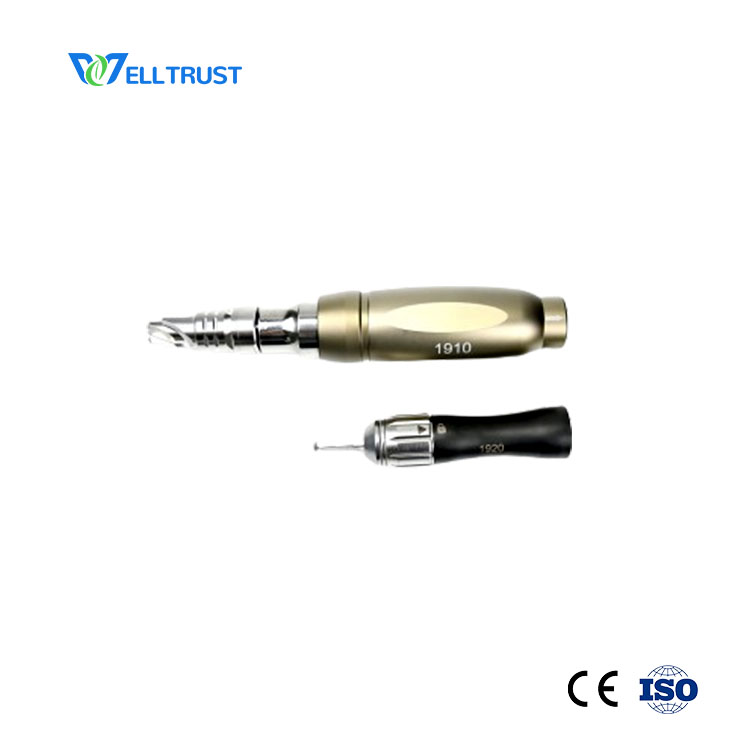

| 4 | Perforator Adaptor | |
| 5 | Craniotome Adaptor | |

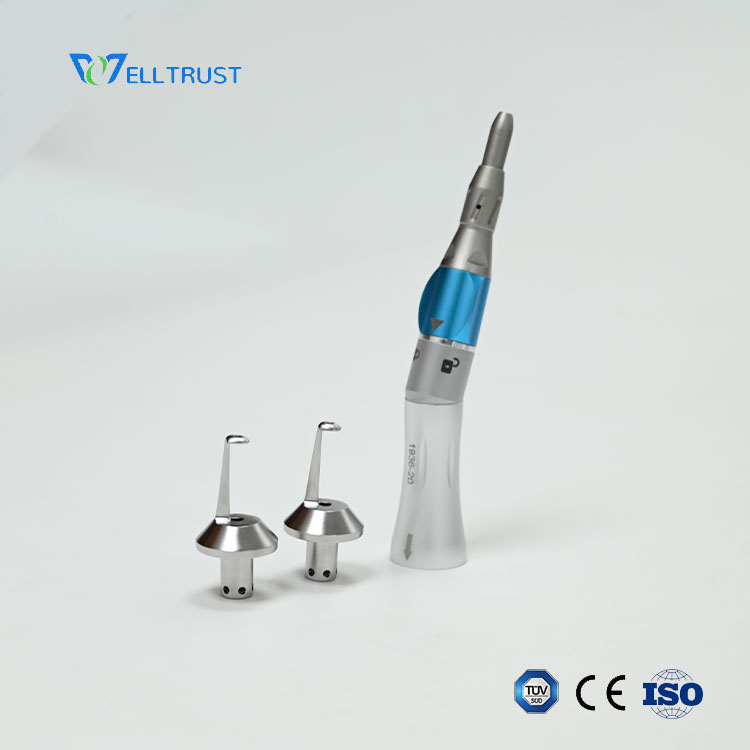

| 6 | Standard Straight Drill Handpiece | 25/45/68/85/88/108/128mm |
| 7 | Standard Angled Drill Handpiece | 25/45/68/85/88/108/128mm |
| 8 | Dual Pedal Foot Switch | |

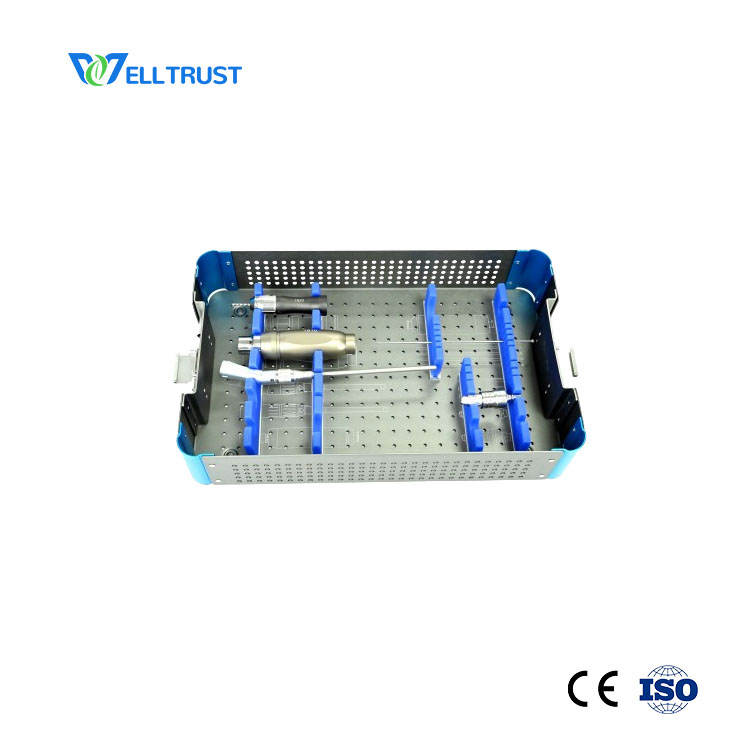

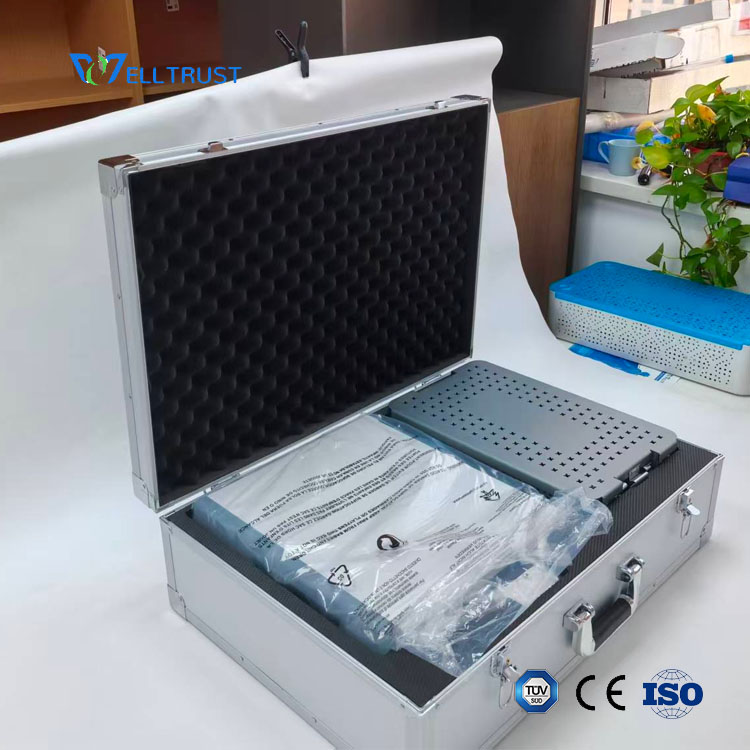

| 9 | Sterilizing Container | 375*220*75mm |
| 10 | Related Consumables | |
 |

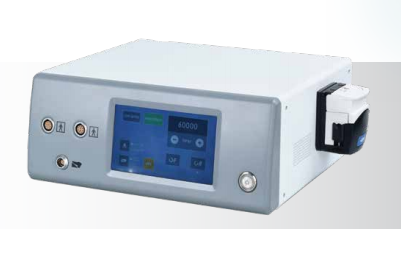

TC-01 Multifunctional Console Inspired by listening to your needs, TC-01 is the choice that could meet your expectations for the surgical power system and neurosurgery drill. This system could be used in surgeries including neurosurgery, spinal, maxillofacial and ENT, as well as small bones.Our innovative OS could meet the personalized operation setting, perfectly match your surgical habits, make your surgery more accurate and efficient.

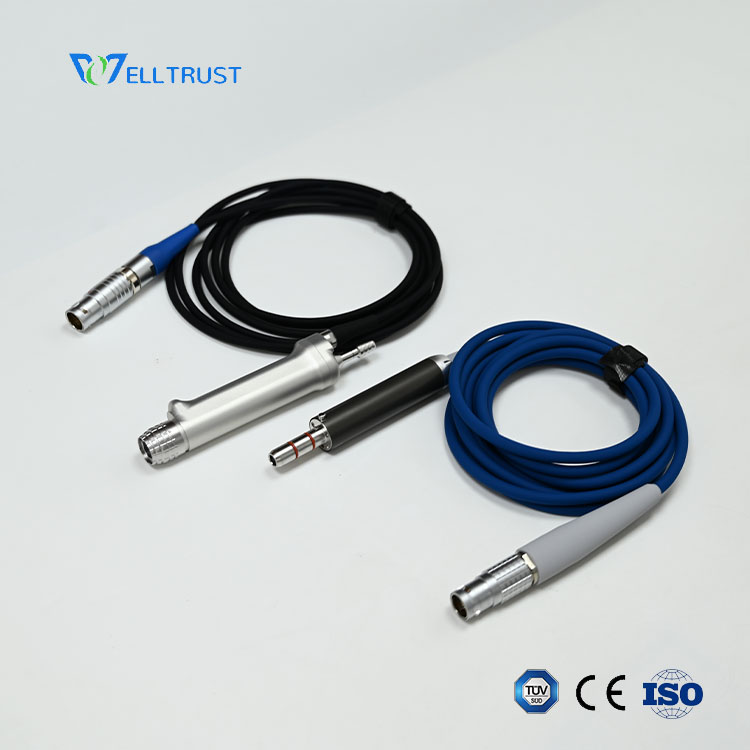

With 2 motors in standard set, one high speed and one high torque.
Speed up to 80000 RPM
Cross department using, multifunctional, one for more
|
