E100 Multi Function Drill for Orthopedic Procedures

The HAS-DBD E100 Multi Function Drill is a handheld surgical drill system designed around a range of interchangeable attachments. The product information shows a key chuck attachment, reaming attachments, wire or pin driving attachments and a reciprocating saw attachment. This configuration allows medical procurement teams to review one drive unit together with different attachment options for planned orthopedic procedures.

The E100 product materials identify several attachment ratios and interfaces, including 1:1, 3:1 and 5:1 configurations. The system is also shown with a battery, charger, key, housing, transfer shield and sterilization box. Exact indications, sterilization instructions, compatibility requirements and delivery configuration should be confirmed through the manufacturer’s current documentation before purchase or clinical use.

E100 Multi Function Drill Specifications

The main product image lists the following operating parameters for the E100 system and its related attachments:

Item	Displayed specification
Key chuck attachment speed range	0–1,200 rpm
Key chuck attachment torque	3.5 N·m
Reaming attachment speed range	0–400 rpm
Reaming attachment torque	10 N·m
Operating voltage	9.6 V
Radial circle run-out	≤0.1 mm
Maximum displayed drill bit diameter	8 mm
Axial movement	≤0.5 mm
Displayed cannulation diameter	6.5 mm
Battery capacity	2100 mAh

These values are transcribed from the supplied product image. The applicable speed, torque and attachment selection should be determined according to the specific attachment, procedure and current instructions for use.

Main E100 Attachments

Battery and charger

The main attachment image shows a battery and charger for the E100 system. A key, housing, transfer shield and sterilization box are also illustrated. The battery capacity shown in the specification image is 2100 mAh, while the operating voltage is listed as 9.6 V. Charging time, battery runtime and the number of batteries supplied are not specified in the images and should be confirmed before ordering.

Key chuck attachment

The key chuck attachment is listed with a displayed speed range of 0–1,200 rpm and torque of 3.5 N·m. The attachment may be selected when a keyed chuck interface is required. The product material also shows different chuck-related options within the 1:1 attachment group, including chuck configurations for displayed diameters of 0–6.5 mm and 1–4.0 mm.

Reaming attachment

The reaming attachment is listed with a displayed speed range of 0–400 rpm and torque of 10 N·m. The E100 attachment chart presents 3:1 and 5:1 reamer attachment groups with interfaces including 1/4-inch Jacobs Chuck, Zimmer/Hudson, Standard Hudson, Aesculap, Synthes DHS, Trinkle and Large AO. Availability and compatibility for each interface should be verified with the supplier.

Wire or pin driving attachment

The attachment chart shows K-wire drill options for displayed diameter ranges of 0.7–1.6 mm and 1.8–4.0 mm. These wire or pin driving attachments are presented as part of the E100 accessory range. The appropriate wire or pin size, attachment and operating parameters should be confirmed according to the planned procedure and product instructions.

Reciprocating saw attachment

A mini oscillating saw attachment is shown in the E100 attachment chart, and the main product image also identifies a reciprocating saw configuration. The attachment can be reviewed when a reciprocating or oscillating cutting interface is required. Blade specifications, stroke information and operating instructions are not provided in the images and require separate confirmation.

Attachment Groups for Different Workflows

1:1 Multi Function Drill Attachments

The 1:1 group includes chuck options identified as Jacobs Chuck 0–6.5 mm, Jacobs Chuck 1–4.0 mm, keyless chuck 4.0 mm and keyless chuck 8.0 mm. The chart also shows related chuck keys. These options give procurement teams several chuck formats to compare when reviewing the required drill bit range and interface.

1:1 Quick Attachments

The 1:1 quick attachment group includes Small AO, Zimmer/Hudson, Large AO, Standard Hudson, Mini AO and AO/Trinkle interfaces. Quick attachment selection should be based on the equipment and accessory system used by the medical facility.

3:1 Reamer Attachments

The 3:1 reamer group includes six displayed interface options: 1/4-inch Jacobs Chuck, Zimmer/Hudson, Standard Hudson, Aesculap, Synthes DHS and Trinkle, together with a Large AO option. The product chart describes this group as intended for moderate-torque surgery, including the development of femoral tunnels for femoral nails and other major bone trauma procedures. This description should be reviewed together with the manufacturer’s current indication and use documentation.

5:1 Reamer Attachments

The 5:1 reamer group shows 1/4-inch Jacobs Chuck, Zimmer/Hudson, Standard Hudson, Aesculap and Large AO interfaces. The product chart describes this group in connection with acetabular abrasion and total hip arthroplasty. The exact indication, compatible accessories and procedural limitations require confirmation through the current product documentation.

Frequently Asked Questions

What is the E100 Multi Function Drill?

The HAS-DBD E100 Multi Function Drill is a handheld surgical drill system shown with key chuck, wire or pin driving, reamer and reciprocating saw attachments.

What is the speed range of the E100 key chuck attachment?

The displayed key chuck attachment speed range is 0–1,200 rpm, with a displayed torque of 3.5 N·m.

What is the speed range of the E100 reaming attachment?

The displayed reaming attachment speed range is 0–400 rpm, with a displayed torque of 10 N·m.

What attachments are available for the E100?

The product materials show wire or pin driving attachments, 1:1 multi-function and quick attachments, 3:1 and 5:1 reamer attachments, and a mini oscillating saw attachment.

What battery capacity is shown for the E100?

The product image lists a battery capacity of 2100 mAh and an operating voltage of 9.6 V.

Does the image confirm the complete E100 package?

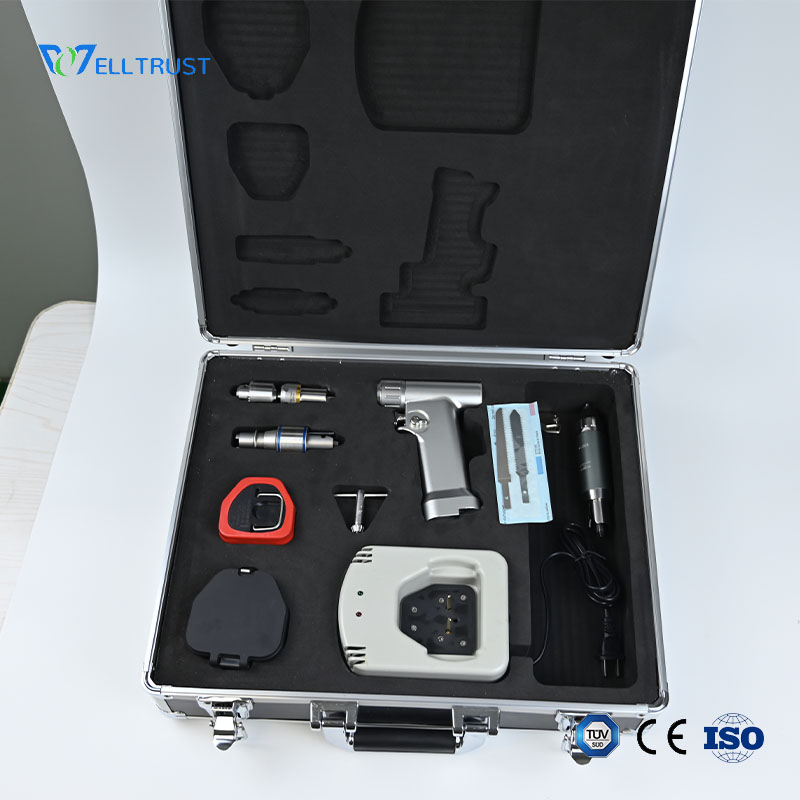

The images show a battery, charger, key, housing, transfer shield and sterilization box, together with multiple attachments. The complete delivery scope should be confirmed through the current quotation, package list and manufacturer’s product documentation.

Conclusion

The HAS-DBD E100 Multi Function Drill is presented as a handheld system with a broad selection of orthopedic drill attachments. Its product materials show key chuck, wire or pin driving, quick attachment, 1:1 multi-function, 3:1 and 5:1 reamer, and mini oscillating saw options. The displayed specifications include a 0–1,200 rpm key chuck range, a 0–400 rpm reaming range, 3.5 N·m and 10 N·m torque values, 9.6 V operating voltage and 2100 mAh battery capacity. Medical professionals, distributors and purchasing teams should confirm the required interface, attachment, specifications and current product documents before placing an order.
